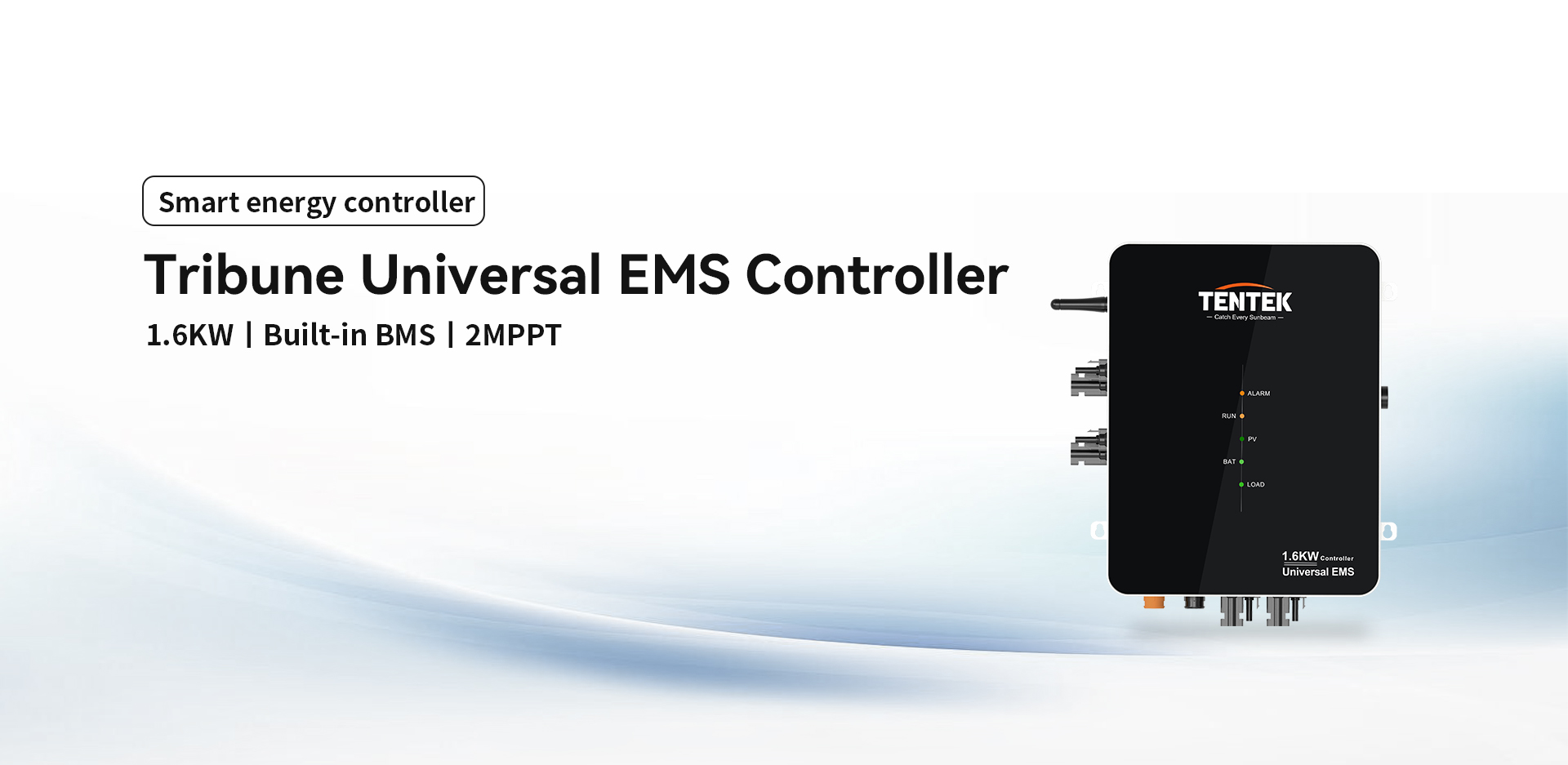

Tribune Series Universal EMS 1.6KW Controller

The TENTEK Tribune Series Universal Controller can simulate the solar panel's output voltage-current curve, manually/automatically control the 99%+  microinverter's output power to the main grid based on real-time consumption, and help customers to store excess solar energy in the battery, then realize  80-90% solar energy self consumption




TRIBUNE Universal EMS Controller

  Match 99% brand microinverter

  Zero feed in to the grid

●  No battery type limitation

●  Charge and discharge simultaneously

  0-1600W inverter output power adjustable

TRIBUNE Universal EMS Controller

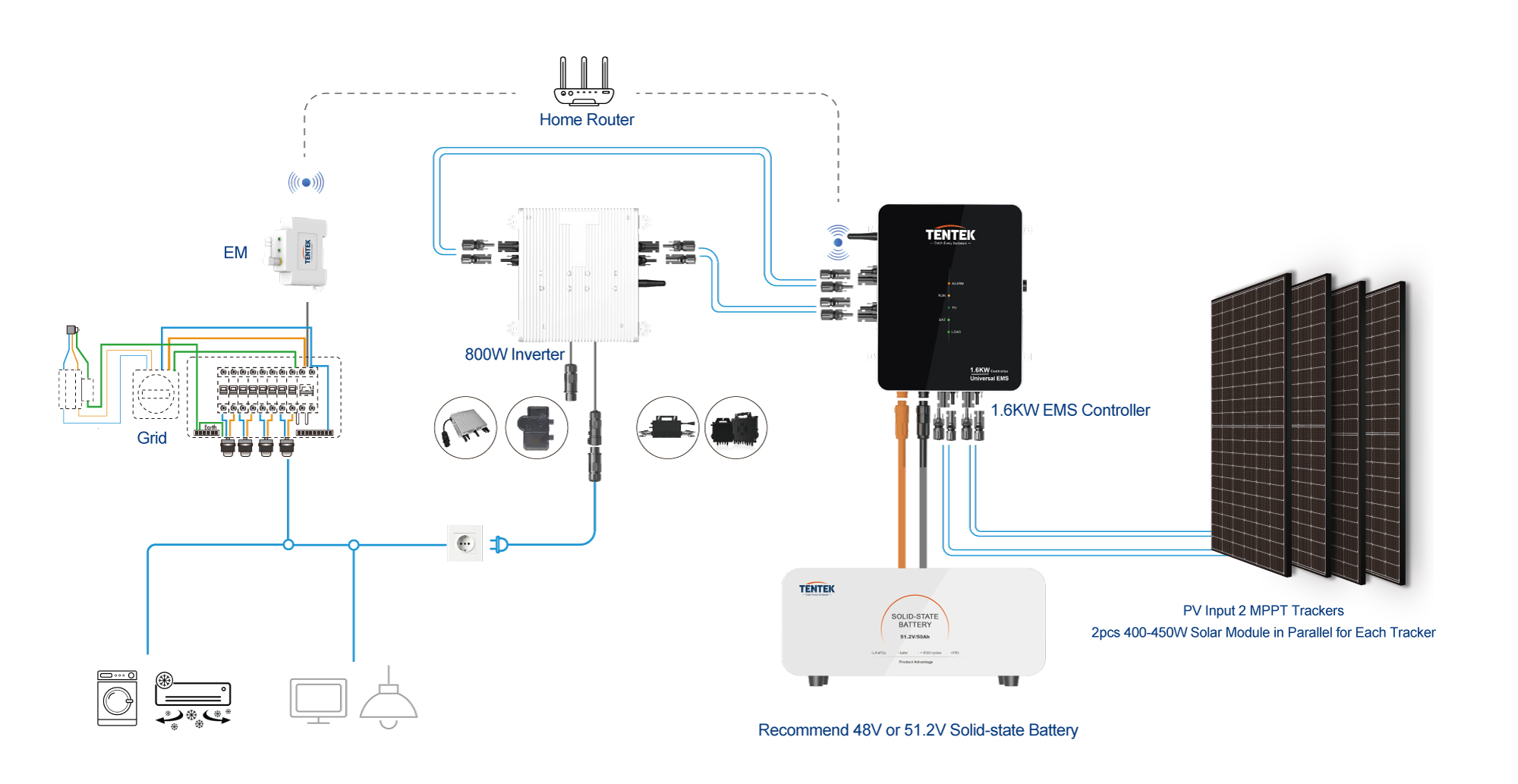

TRIBUNE Universal EMS Controller(图1)


Tribune-EMS 1.6KW-pro+

MPPT Solar Charger

Number of MPPT Trackers

2

PV Operating Voltage

20-60V

MPPT Operating Voltage Range

25-50V

Max. PV Open Circuit Voltage

60Vdc

Max. PV Aaary Power

2 x 1 Tracker 800W

Max. Chargin Current

26A (1600W)

Self Consumption

4W

MPPT Tracking Efficiency

99%

Conversion Efficiency

95%

Protection

Overload, Reverse, Connection, Short Circuit, High Voltage, Low Voltage, High Temperature Protection

DC Output

DC Output Power

Controlled by APP

DC Output Port

2(Independent)

DC Output Voltage Range

20A-50A

DC Output Max. Current

2*25A

DC Output Max. Power

1600W

Battery

Battery Type

Sealed, AGM, Gel, Flooded, Lithium, Lithium carbonate

Battery Voltage

Standard 48V(51.2V)

Battery Voltage Range

40V-60V

Battery Charging Overvoltage Protection Value

57.6V(Default)

Battery Discharge Voltage Protection Value

44V(Default)

Communication

Communication Port

RS485 with battery

WIFI

For APP Remote Monitoring

Energy Management

Output Power to Microinverter

1600W

Qty of Microinverter

2pcs 800W Microinverter

Limited the Output Power to Microinverter

Set up by APP or Automatically Controlled By the Tentek EM

Customized the Output Power at Different Time

Set up By APP

Controller Working Mode

Load Priority

Mechanical

Net Weight

4.5KG

Dimensions

232*301*90 MM

Cooling

Natural Convection-No Fans

Enclosure

IP65

Environment

Operating Ambient Temperature Range

-25℃ to 65℃(-13℉ to +149℉)

Storage Temperture

-40 ℃ to+85 ℃(-40℉ to +185℉)

Humidity

100% Non-Condensing

Warranty

3 Years

Certification

Safety

CE and UL
