Tiger Series 2-in-1 Microinverter

Tentek Microinverter Features Storage Function

TENTEK New Energy's Tiger-1200w Microinverter offers a new ideal solution for home storage PV system linked to 5KWH-20KWH storage battery, which is a dual power micro inverter.

Like other common microinverters, TENTEK Tiger Microinverter has a peak efficiency of 95.5% and a nominal maximum power point tracking (MPPT) efficiency of 99.5%; that functions for rapid shutdown and is able to operate at completely low voltage. And it is available as a single-phase (220 V) and three-phase device(380V). Also it can be used with 60 and 72-cell designed modules and a power output of up to 2000W. Each microinverter can accommodate up to four PV modules with an output of 600W on each.

Another application is storage mode : Once your system is large enough to have excess energy to store during daylight, added expansion set with TENTEK Tribune-EMS controller enables the solar panels to charge the batteries first then let the batteries to supply power to the micro inverters at night for consumption or when main power is shutdown.

The inverter comes with a 10-year warranty that is extendable to 25 years.

Tiger Series 2-in-1 Microinverters

● Solar panels output voltage <60VDC, which decrease the risk of an electrical fire.

● One-panel match one MPPT, that increase 5-15% power in production compared to conventional string inverters.

● Keep each panel working individually, avoid the impact of partial shadows on the entire

solar system.

● Independently tracking each solar panel’s production, easy to identify each solar panel’s

performance.

● Flexible application allows switching to off-grid mode to supply AC power to home devices.

● Lightweight and compact with plug-and-play connectors, easy to install.

● App monitors the running station anytime, anywhere.

Tiger Series 600W-1200W Microinverters(图1)

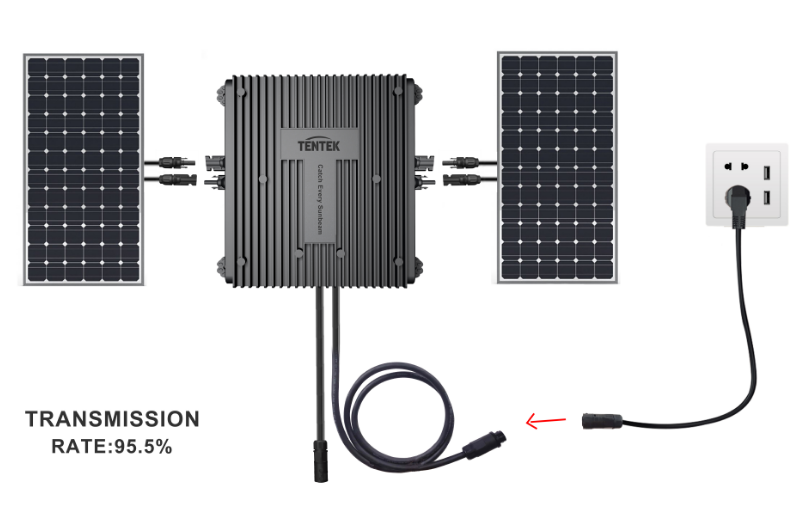

How Does The Microinverter Work?

··········

The TENTEK Tiger series Microinverter maximizes energy production from your

photovoltaic (PV) array. The Tiger-400-600KW 2-in-1 Microinverter has 4 indenpent MPPT

trackers and is individually connected to 2 PV modules in your array. This unique

configuration means that an individual Maximum Power Point Tracker

(MPPT) controls each PV module, ensuring that the maximum power available

from each PV module is transmitted to the utility grid regardless of the performance of the

other PV modules in the array. Although individual PV modules in the array might

be affected by shading, soiling, orientation, or module mismatch, the TENTEK

Microinverter ensures the best performance for its associated PV module.

The result is maximum energy production from your PV system.

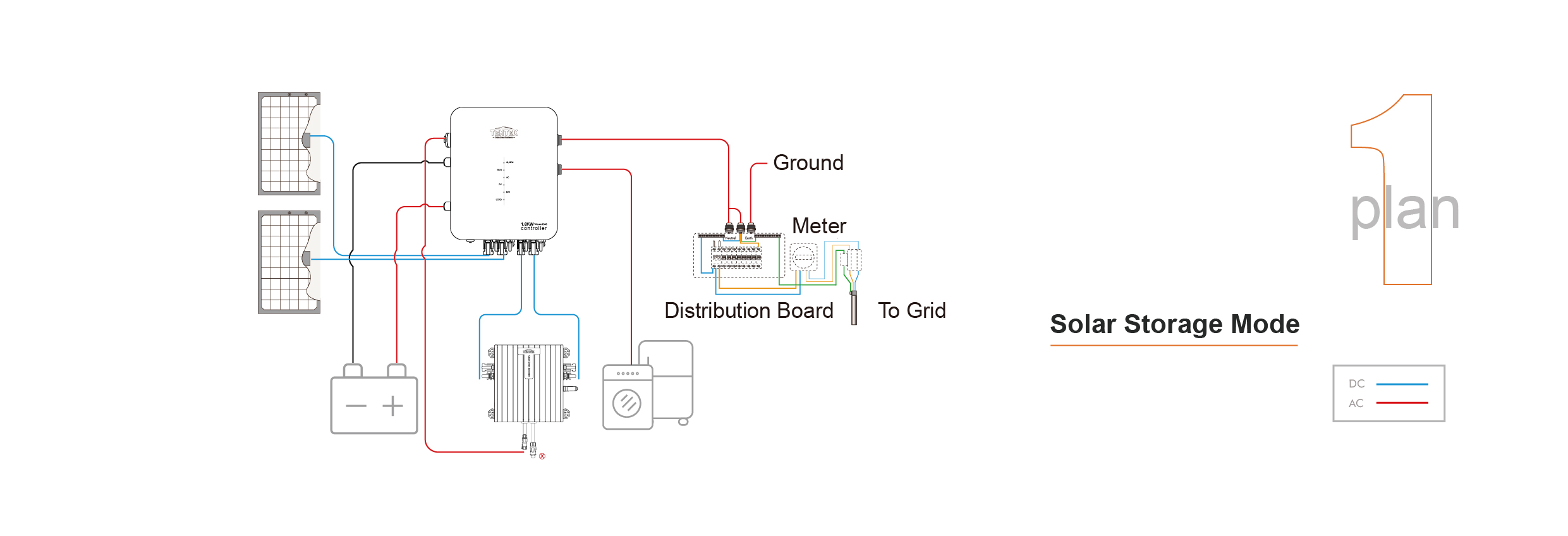

Solar Storage Mode

Tiger Series 600W-1200W Microinverters(图2)

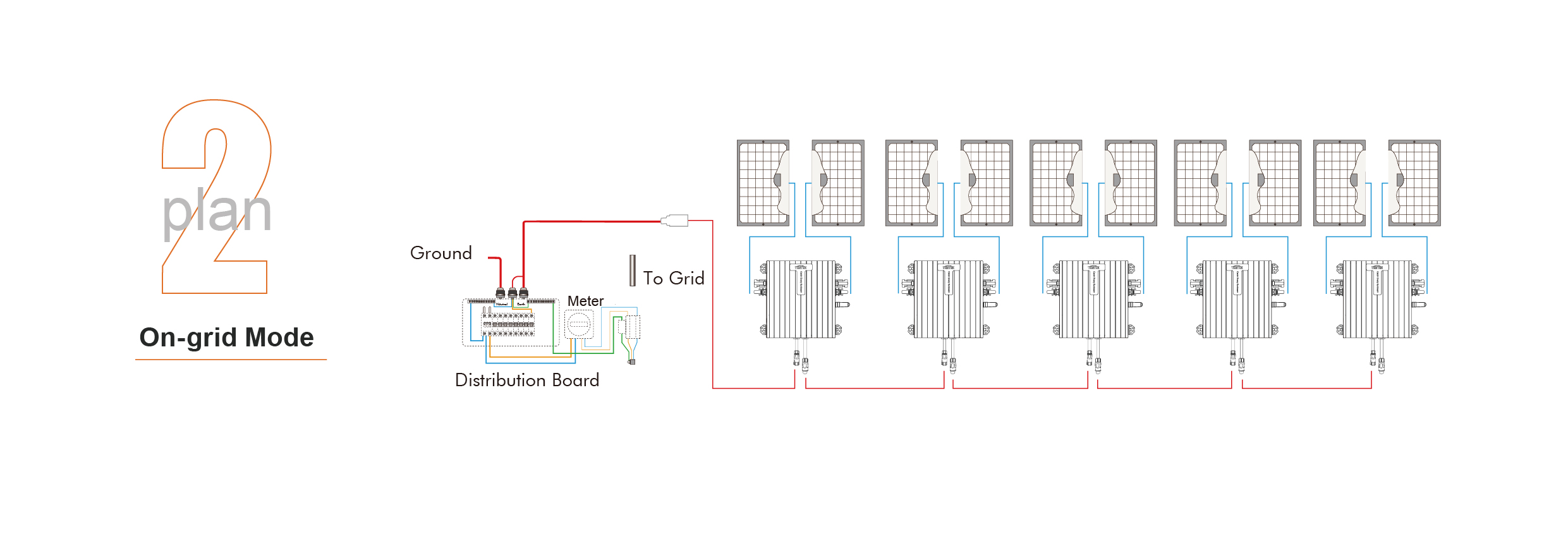

On-grid Mode

Tiger Series 600W-1200W Microinverters(图3)

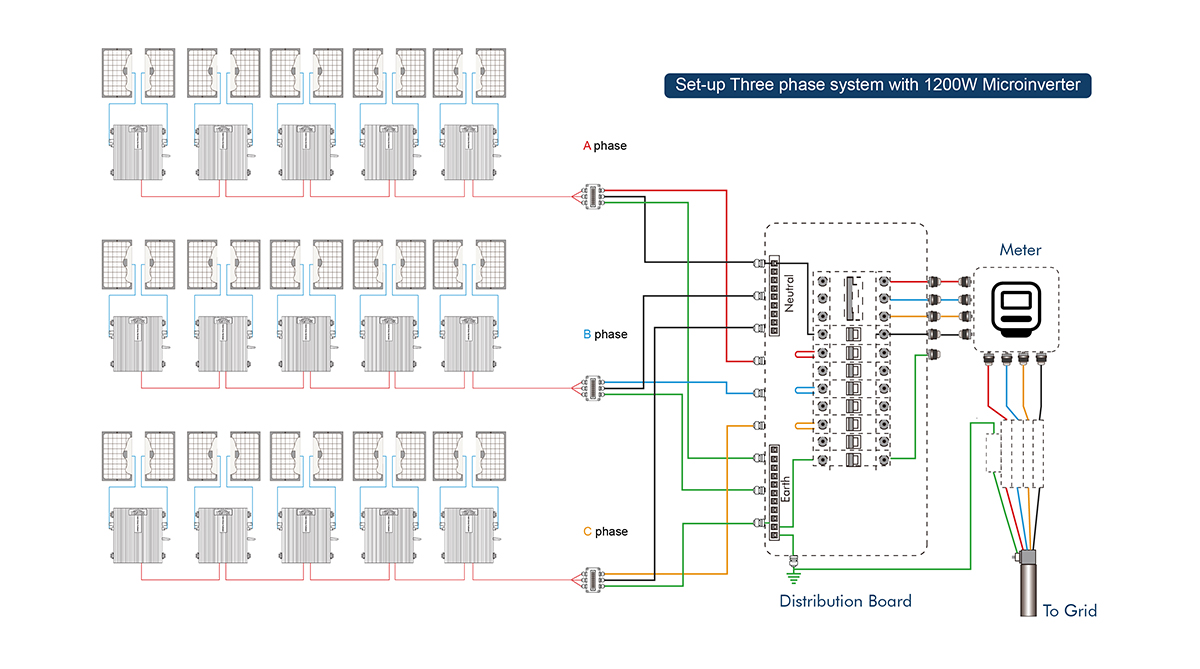

Set-up Three phase system with 1200W Microinverter

Tiger Series 600W-1200W Microinverters(图5)

Datasheet

Model	Tiger-600W2E1P	Tiger-800W2E1P	Tiger-1KW2E1P	Tiger-1.2KW2E1P
PV Input Data
Number of MPPT Trackers	2
Suggested Modules Range	300W~400W	350W~450W	400W~500W	550W~600W
Max. Input DC Voltage	60V
MPPT Operating Voltage Range	25~50V
Startup Voltage	20V
Over Voltage Class DC Port	II
DC Port Back Feed Current	0 A
Max. Input Current	2× 18 A
PV Array Requirement	No Additional PV side protection required
AC Output Data
*Peak Output Power	1800W	2400W	3000W	3600W
Max. Continuous Output Power	600W	800W	1000W	1200W
Max. Continuous Output Current	2.7A	3.6A	4.55A	5.45A
Nominal Output Voltage	220/230Vac(187-278Vac)
Nominal Frequency/Range	50HZ/60HZ
Extended Frequency/Range	45~55Hz / 55~65Hz
AC Short Circuit Current	7.5A
Max. Units Per Branch Circuit	5
Over Voltage Class AC Port	III
Power Factor(Adjustable)	>0.99 Default, 0.8 Leading...0.8 Lagging...
Level of Harmonics Distortion	<3%
AC Protection Required	AC output side need 63A circuit breaker(on grid mode)
Efficiency
CEC Weighted Efficiency	95%
Peak Inverter Efficiency	95.50%
Static MPPT Efficiency	99%
Night Time Power Consumption	＜50mW
Mechanical Data
Operating Ambient Temperature Range	-40 °C to +65 °C(-40 °F to +149 ° F )
Storage Ambient Temperature	-40 °C to +85 °C(-40 °F to +185° F )
Relative Humidity Range	4% to 100% (condensing)
Connector type: DC	MC4
*Dimensions(WHD)*	21824542mm
Weight	4.2KG
Cooling	Natural Convection-No Fans
Approved for Wet Locations	Yes
Enclosure Rating	IP67
AC Cable Length(Customized)	Standard 2.4m(customized available)
Features
Communication	WIFI
Monitoring	Support remote web page monitoring and mobile APP by TENTEK Cloud
Compliance	In-metro, UL1741, VDE4105, VDE0126, CE,EN50549...
