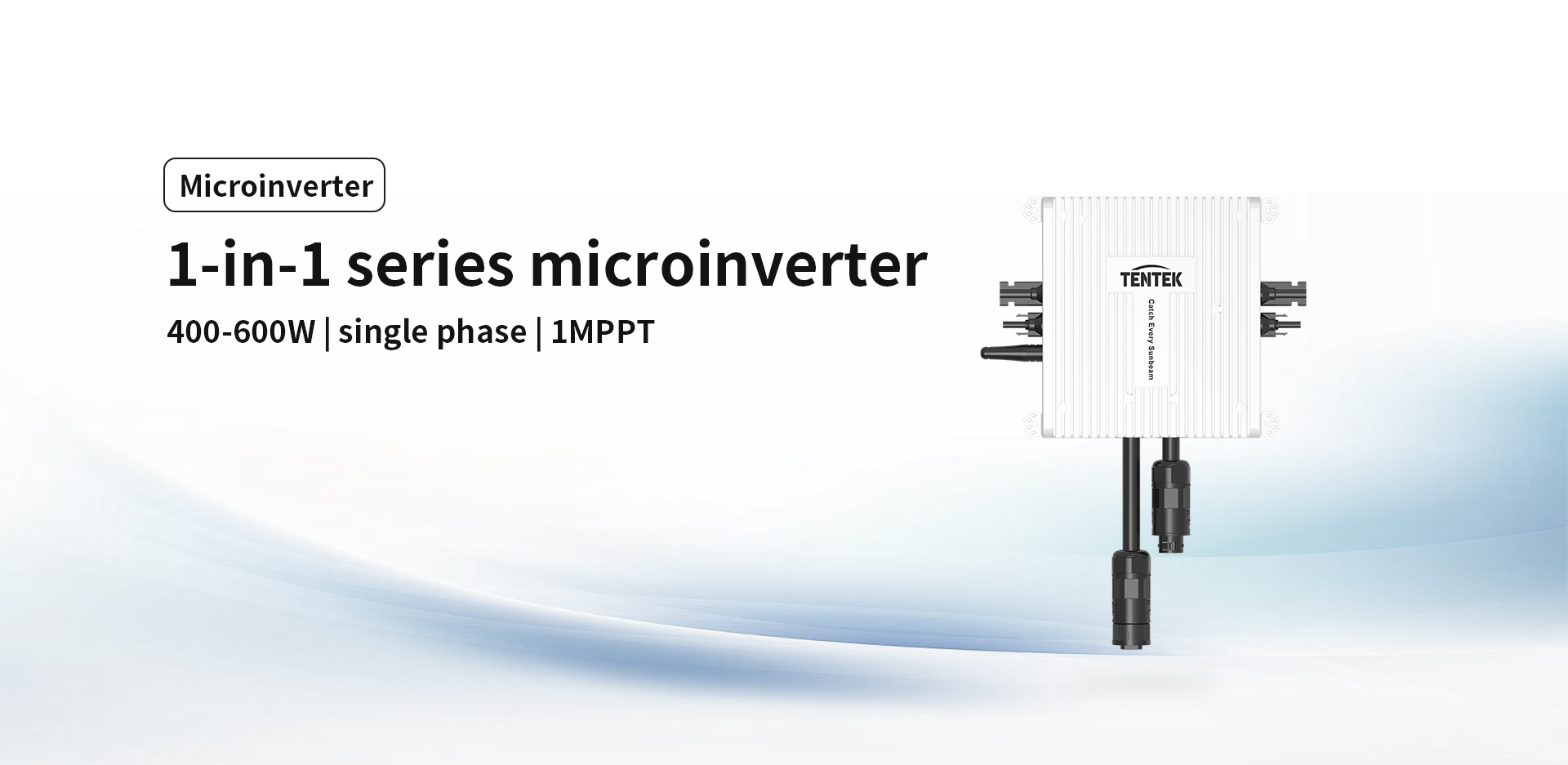

Tiger series 1-in-1 Microinverters
Tentek Microinverter Features Storage Function
TENTEK New Energy's Tiger-600w Microinverter offers a new ideal solution for home storage PV system linked to 5KWH-20KWH storage battery, which is a dual power micro inverter.
Like other common microinverters, TENTEK Tiger Microinverter has a peak efficiency of 95.5% and a nominal maximum power point tracking (MPPT) efficiency of 99.5%. That Functions for rapid shutdown and is able to operate at completely low voltage. And it is available as a single-phase (220 V) and three-phase device(380V). Also it can be used with 60 and 72-cell designed modules and a power output of up to 2000W. Each microinverter can accommodate up to four PV modules with an output of 600W on each.
Another application is storage mode : Once your system is large enough to have excess energy to store during daylight, added expansion set with TENTEK Tribune-EMS controller enables the solar panels to charge the batteries first, then let the batteries to supply the power to the microinverters at night for consumption or when main power is shutdown.
The inverter comes with a 10-year warranty that is extendable to 25 years.
Tiger Series 1-in-1 Microinverters
● Solar panels output voltage <60VDC, decrease the risk of an electrical fire.
● One-panel match one MPPT, increase 5-15% power in production vs string inverters.
● Keep each panel working individually, avoid the impact of partial shadows on the entire solar system.
● Independently tracking each solar panel’s production, easy to identify each solar panel's performance.
● Flexible application can switch to off-grid mode to supply AC power to home devices.
● Lightweight and compact with plug-and-play connectors, easy to install.
● App monitors the running station anytime, anywhere.
|

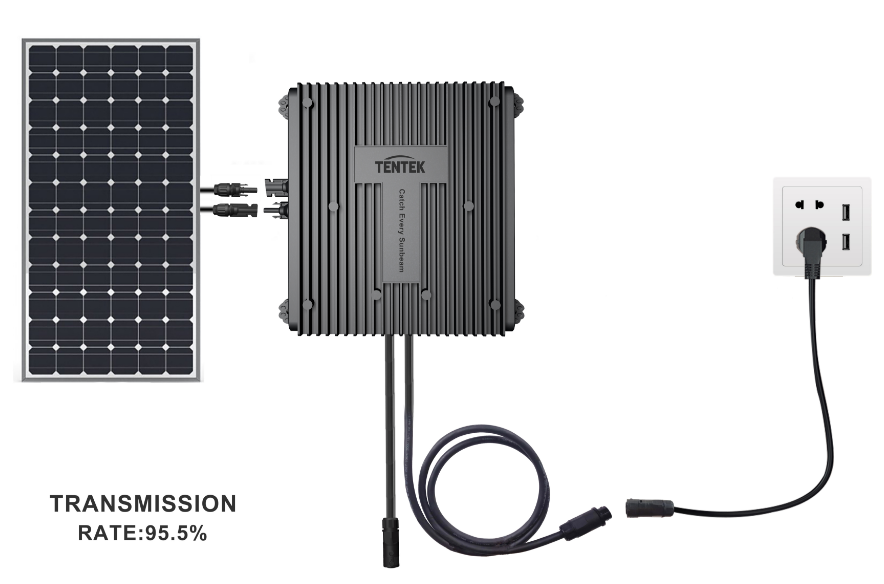

How Does The Microinverter Work? ·········· The TENTEK Tiger series Microinverter maximizes energy production from your photovoltaic (PV) array. The Tiger-400-600KW 1-in-1 Microinverter has 1 indenpent MPPT trackers and is individually connected to 1 PV modules in your array. This unique configuration means that an individual Maximum Power Point Tracker (MPPT) controls each PV module, ensuring that the maximum power available from each PV module is transmitted to the utility grid regardless of the performance of the other PV modules in the array. Although individual PV module in the array might be affected by shading, soiling, orientation, or module mismatch, the TENTEK Microinverter ensures best performance for its associated PV module. The result is maximum energy production from your PV system. |

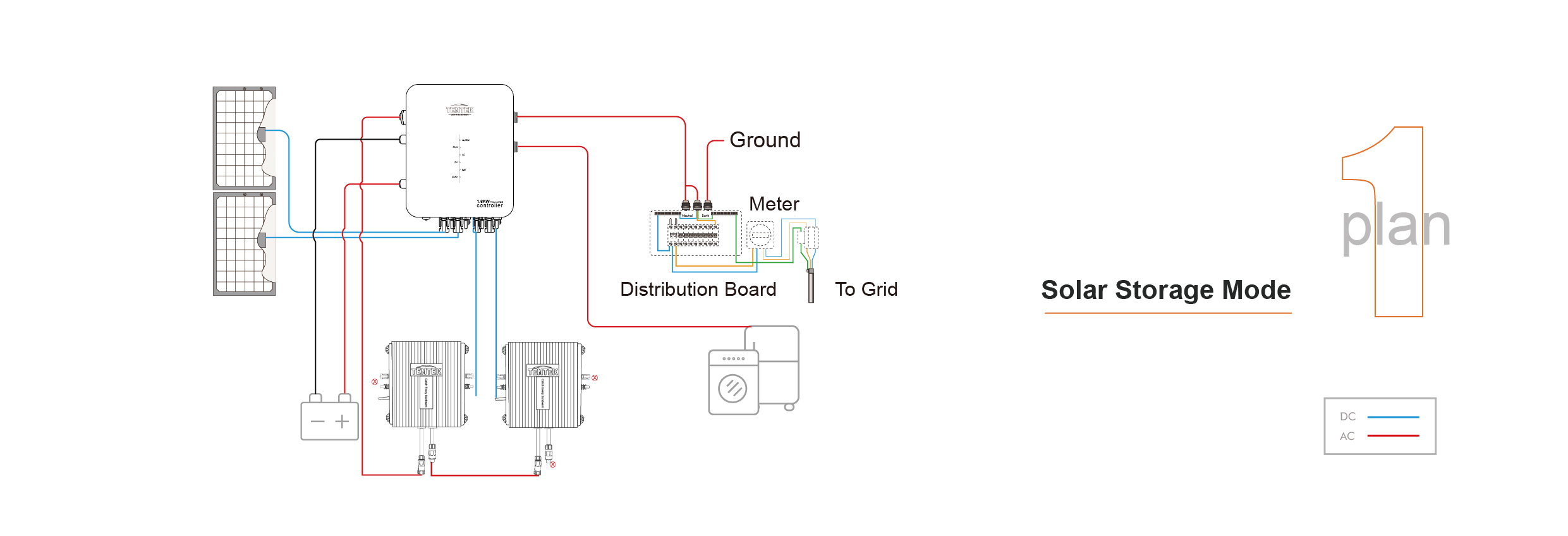

Solar Storage Mode

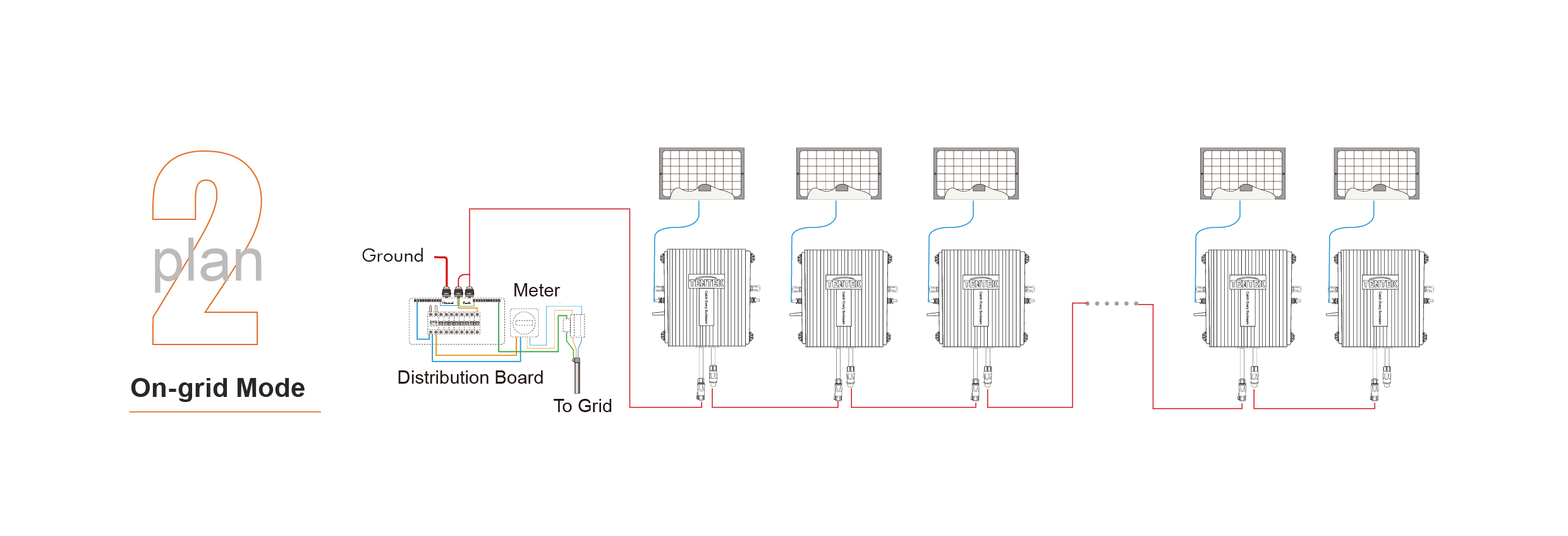

On-grid Mode

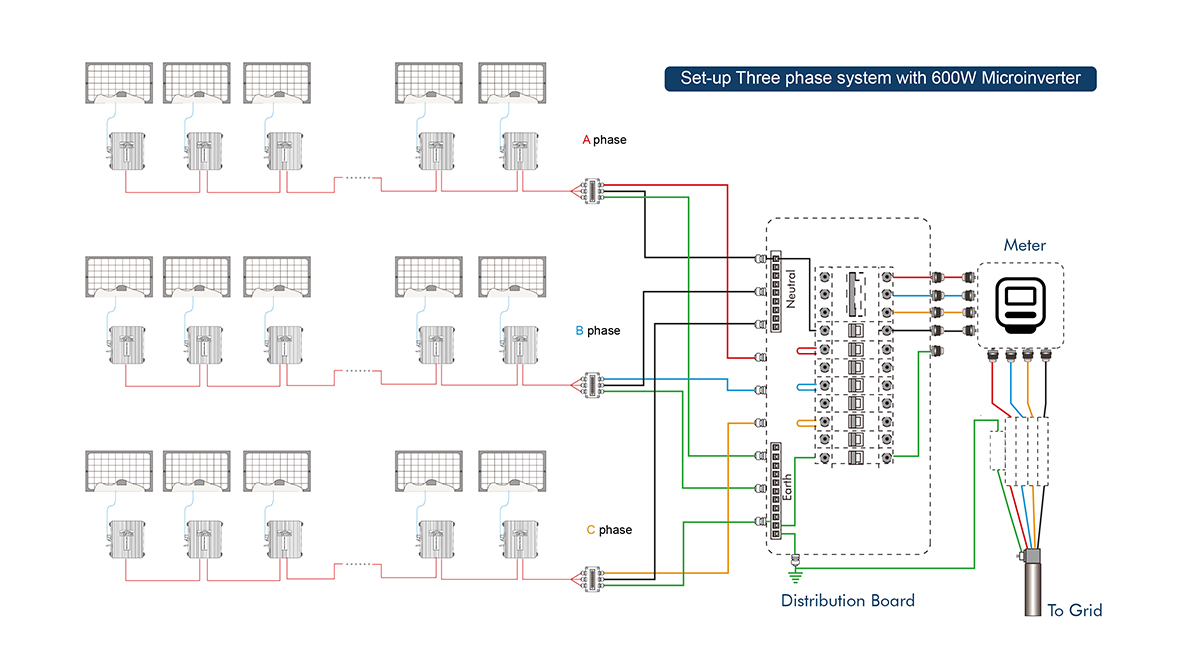

Set-up Three phase system with 600W Microinverter
Datasheet
Model | Tiger-400W1E1P | Tiger-500W1E1P | Tiger-600W1E1P |
PV Input Data | |||
Number of MPPT Trackers | 1 | ||
Suggested Modules Range | 150W~250W | 250W~300W | 300W~400W |
Max. Input DC Voltage | 60V | ||
MPPT Operating Voltage Range | 25~50V | ||
Startup Voltage | 20V | ||
Over Voltage Class DC Port | II | ||
DC Port Back Feed Current | 0 A | ||
Max. Input Current | 1× 15 A | ||
PV Array Requirement | No Additional PV side protection required | ||
AC Output Data | |||
Peak Output Power | 1200W | 1500W | 1800W |
Max. Continuous Output Power | 400W | 500W | 600W |
Max. Continuous Output Current | 1.8A | 2.28A | 2.73A |
Nominal Output voltage | 220/230Vac(187-278Vac) | ||
Nominal Frequency/Range | 50HZ/60HZ | ||
Extended Frequency/Range | 45~55Hz / 55~65Hz | ||
AC Short Circuit Current | 3.7A | ||
Max. Units Per Branch Circuit | 10 | ||
Over Voltage Class AC Port | III | ||
Power Factor(Adjustable) | >0.99 Default, 0.8 Leading...0.8 Lagging... | ||
Level of Harmonics Distortion | <3% | ||
AC Protection Required | AC output side need 63A circuit breaker(on grid mode) | ||
Efficiency | |||
CEC Weighted Efficiency | 95% | ||
Peak Inverter Efficiency | 95.50% | ||
Static MPPT Efficiency | 99% | ||
Night Time Power Consumption | ＜50mW | ||
Mechanical Data | |||
Operating Ambient Temperature Range | -40 °C to +65 °C(-40 °F to +149 ° F ) | ||
Storage Ambient Temperature | -40 °C to +85 °C(-40 °F to +185° F ) | ||
Relative Humidity Range | 4% to 100% (condensing) | ||
Connector type: DC | MC4 | ||
Dimensions(W*H*D) | 195*177*42mm | ||
Weight | 2.8 KG | ||
Cooling | Natural Convection-No Fans | ||
Approved for Wet Locations | Yes | ||
Enclosure Rating | IP67 | ||
AC Cable Length (Customized) | Standard 1.5m(customized available) | ||
Features | |||
Communication | WIFI | ||
Monitoring | Support remote web page monitoring and mobile APP by TENTEK Cloud | ||
Compliance | In-metro, UL1741, VDE4105, VDE0126, CE,EN50549... | ||
