TRIBUNE Hybrid EMS 1.6-4.8 KW Controller

The TENTEK Tribune series energy controller has a powerful and advanced  system which integrates (MPPT+AC) battery charging and energy management  functions for on/off grid PV systems with a maximum 4KW power output. It works  with our Tiger series microinverters to magically create a residential solar storage  system that will support battery mode operation without main power. Furthermore,  the adaptive function of the wide voltage battery enables customers to choose from  various types of batteries: wide voltage (24V/36V/48V), different types of batteries  (Lead-acid batteries, lithium batteries, or others). The shell is designed with  high-performance aluminum alloy die-casting sealing, so that it can keep running in  harsh natural environments.






TRIBUNE Hybrid EMS Controller

  4 Independent trackers, maximize each solar panel output

  Automatic battery voltage detection in 24V/36V/48V

●  Suitable for different battery types

●  MPPT tracking efficiency >99.9%,  Peak conversion efficiency >99%

  With UPS function, keep your home devices running

  6 LED lights clearly show all work status

  Reverse polarity protection of solar panel and battery

  Overcharge and overload protection

  Flexibly monitor your solar harvest via APP


TRIBUNE Hybrid EMS Controller


TRIBUNE Hybrid EMS Controller (图1)

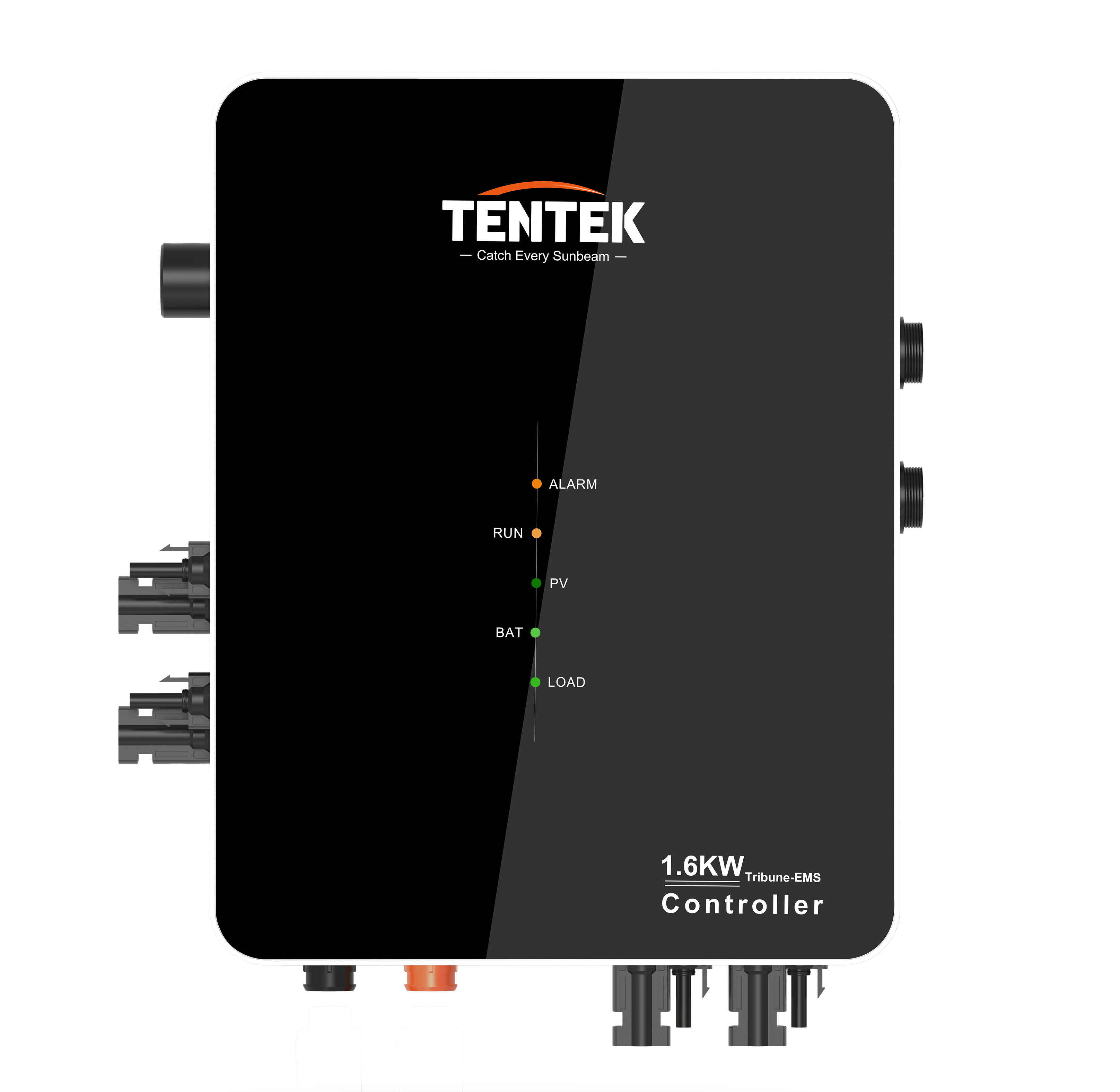

Tribune-EMS 1.6KW

Tribune-EMS 2.4KW

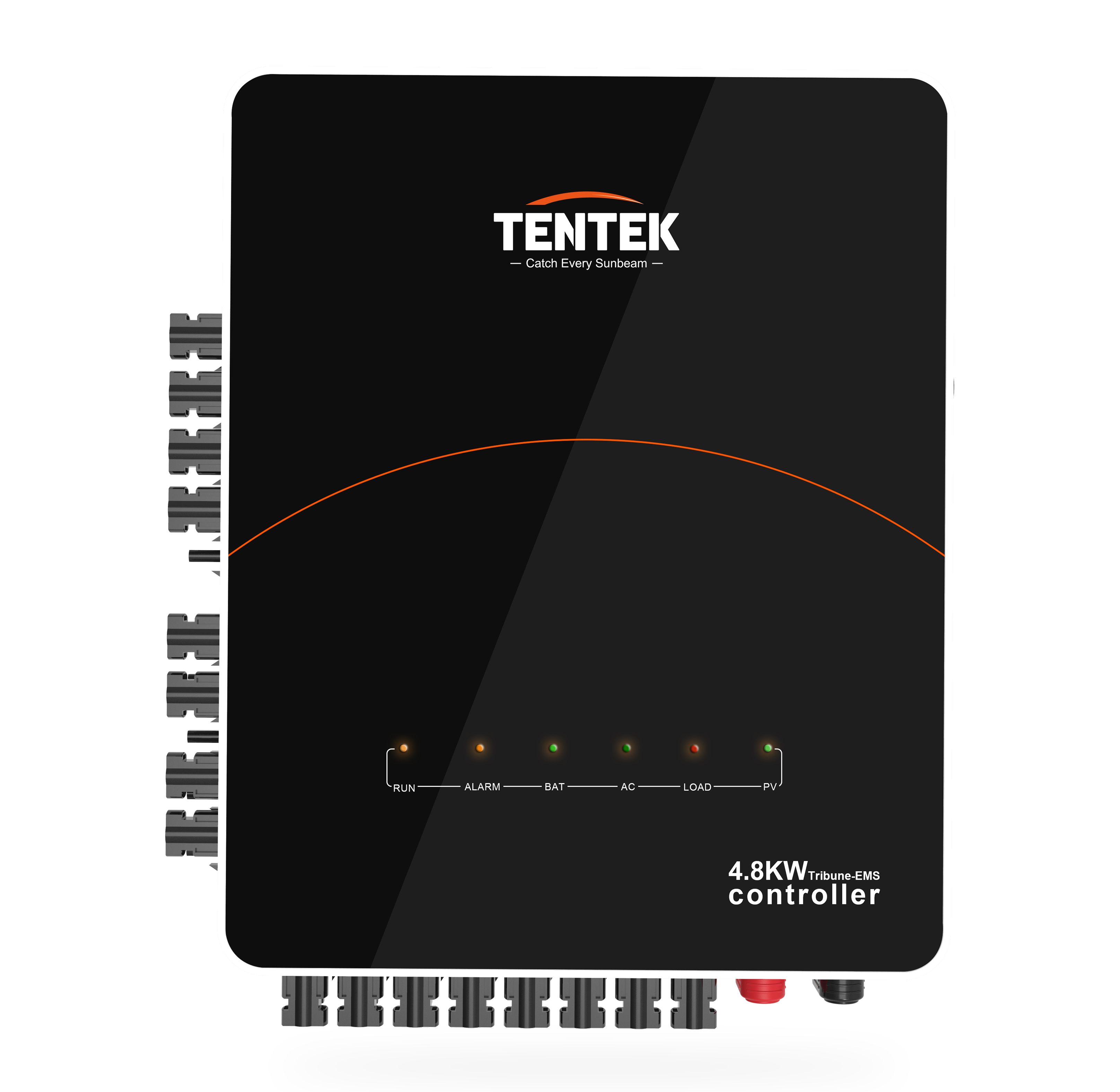

Tribune-EMS 4.8KW

MPPT Solar Charger

Number of MPPT Trackers

2

3

4

PV Operating Voltage

20-60V

MPPT Operating Voltage Range

25-50V

Max. PV Open Circuit Voltage

60Vdc

Max. PV Aaary Power

2x1 Tracker 800W

3x1 Tracker 800W

4x1 Tracker1200W

Max. Charging Current

67A

67A

100A

Max. DC Load Current

2 x 30A

3x 30A

4 x 30A

Self Consumption

2W

MPPT Tracking Efficiency

99.9%

Conversion Efficeency

98%

Protection

Overload, Short Circuit, Battery Low Voltage, Battery Reverse Polarity, Lsland Protection

AC Charger (Optional)

Iuput Voltage

Not available

Not available

110V-260V

Charge Current

Not available

Not available

10A@48V

Charge Current Adjustabele

Not available

Not available

0-10A

Customized Charge Time

Not available

Not available

Set up the Charge Time by APP

Battery


Battery Type

Sealed, AGM, Gel, Flooded, Lithium, Lithium carbonate, User-defined

Battery Voltage

Standard 24V

Standare 36V

Standard 48V

Battery Voltage Range

10V-60V

Customized Discharge Time

Set up the Discharge Time by APP

Communication

Communication Port

RS485

能量管理

Input Power from Microinverter

1.6KW

2.4KW

4.8KW

Qty of Microinverter

1 pcs Tiger-1.2KW;2 pcs Tiger-800W

1 pcs Tiger-2KW;2pcs Tiger-1.2KW

2pcs Tiger-2KW; 4 pcs Tiger-1.2KW

AC Loading (Back-up)

1.2KW 230Vac@1pcs Tiger-1.2KW

2.4KW 230Vac@2pcs Tiger-1.2KW

4KW 230Vac@2pcs Tiger-2KW

Loading Peak Power(Back-up)

3.6KW (with 1pcs Tiger-1.2KW)

7.2KW (with 2pcs Tiger-1.2KW)

12KW (with 2pcs Tiger-2KW)

AC Output(On-grid)

1.2KW 230Vac@1pcs Tiger-1.2KW

2.4KW 230Vac@2pcs Tiger-1.2KW

4KW 230Vac@2pcs Tiger-2KW

Output Power Factor(Adjustable)

>0.99 Default, 0.8 Leading...0.8 Lagging...

UPS Switch Time

<10mS

Level of Harmonics Distortion

THD<3%

Proteciton


Mechanical

Net Weight

4.2KG

4.5KG

6KG

Dimensions

232*301*90 MM

232*301*90 MM

380*357*82 MM

Cooling

Natural Convection-No Fans

Enclosure

IP65

Environment

Ambient Temperature

-25℃ to 65℃(Derating from 45℃)

Storage Temperature

-40 ℃ to+85 ℃

Humidity

100% Non-Condensing

Warranty

3 Years

Cetification

Safety

CE and UL
