TRIBUNE- EMC 1.6-4.8KW MPPT+ AC Intelligent EMS Controller

TRIBUNE- EMC 2.4KW MPPT+ AC Intelligent EMS Controller, can be connected with 3 PCS 600w micro-inverters

Tentek Tribune series 2.4KW controllers have flexible functions to help

end users to adapt with different usage scenarios

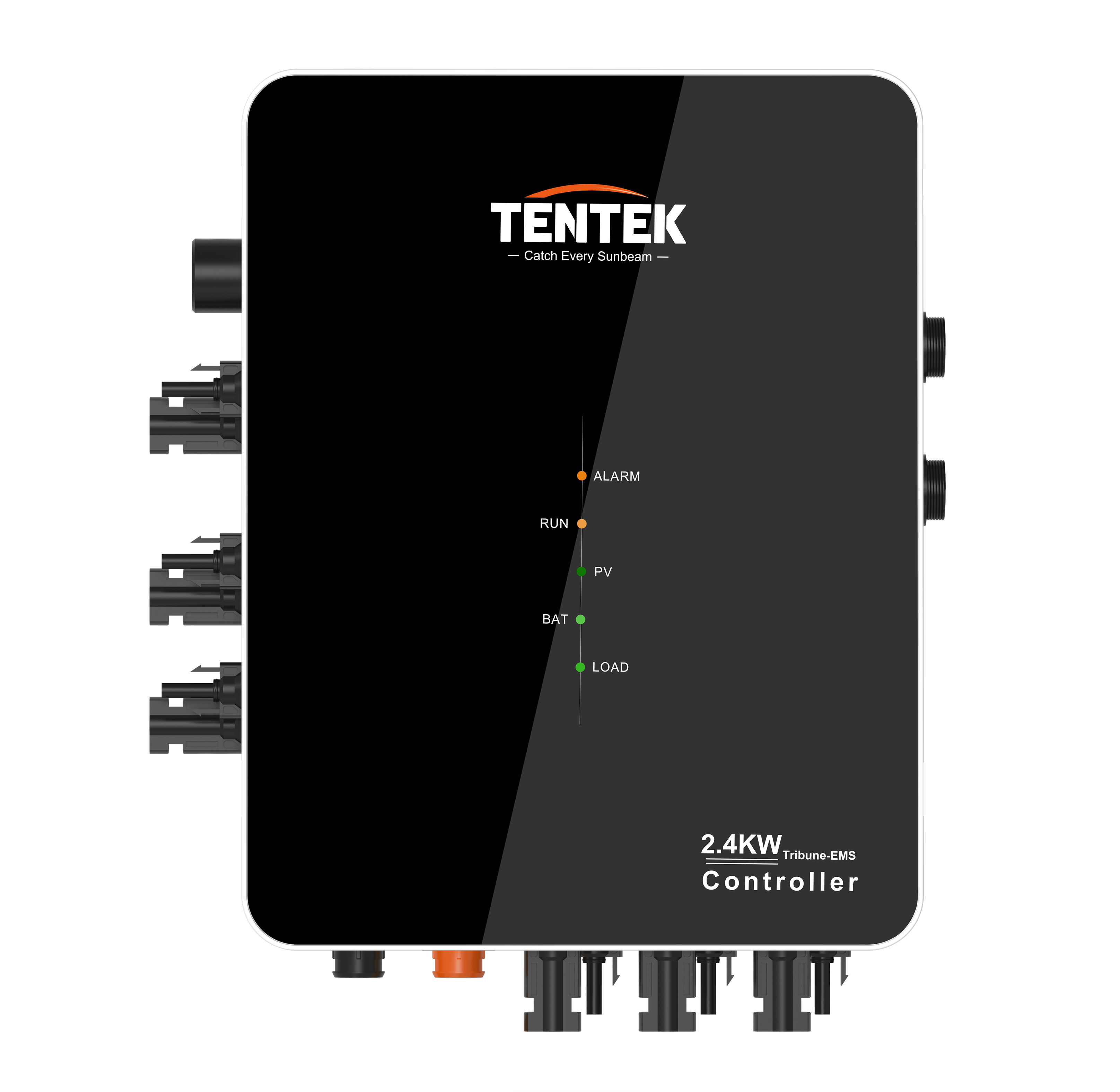

TRIBUNE-EMS 2.4KW Controller

● 3 Independent trackers, maximize each solar panel output

● Automatic battery voltage detection in 12V/24V/36V/48V

● Suitable for different battery types

● MPPT tracking efficiency >99.9%, Peak conversion efficiency >99%

● With UPS function, keep your home devices running

● 6 LED lights clearly show all work status

● Reverse polarity protection of solar panel and battery

● Overcharge and overload protection

● Flexibly monitor your solar harvest via APP

TENTEK Intelligent EMS ControllerTribune-EMS 2.4KW Controller

TENTEK Tribune series energy controller has a powerful and advanced system that integrates (MPPT+AC) battery charger and energy management function for on/off-grid PV system with MAX 4.8KW power output. It works with our Tiger Series Microinverter and magically creates a residential solar storage system that support battery mode operation without main power.

Furthermore, the adaptive function of the wide voltage battery enables customers to choose batteries in different voltage: (12V/24V/36V/48V), and different types: (Lead-acid batteries, lithium batteries, or others). The shell is designed with high-performance aluminum alloy to die-casting sealing so that it can keep running in the harsh natural environment.

TRIBUNE-EMS 1.6-2.4KW Controller(图1)

Datasheet

Model	Tribune-EMS 2.4KW
MPPT Solar Charger
Number of MPPT Trackers	3
PV Operating Voltage	20-60V
MPPT Operating Voltage Range	25-60V
Max. PV open circuit voltage	60Vdc
Max. PV array Power	3 x 1 Tracker 800W
Max. Charging Current	50A
Max. DC load Current	2 x 30A@45V
Self Consumption	2W
MPPT Tracking Efficiency	99.90%
Conversion Efficiency	98%
Protection	overload, reverse connection, short circuit, high voltage ,high temperature protection
AC Charger（Optional）
Input Voltage	Not available
Charge Current
Charge Current Adjustable
Customized Charge Time
Battery
Battery Type	Sealed , AGM, Gel, Flooded, Lithium , Lithium carbonate, User-defined
Battery Voltage	Standard 36V
Battery Voltage Range	10V-60V
Customized Discharge Time	Set up the discharge time by APP
Communication
Communication Port	RS485
Energy Management
Input Power form Micro inverter	2.4KW
Qty of Microinverter	1pc Tiger-2KW;2pcs Tiger-1.2KW;
AC Loading (Back-up)	2.4KW 230Vac@2pcs Tiger-1.2KW
Loading Peak Power (Back-up)	7.2KW (with 2pcs Tiger-1.2KW)
AC Output (on-grid)	2.4KW 230Vac@2pcs Tiger-1.2KW
Output Power Factor (Adjustable)	>0.99 Default, 0.8 Leading...0.8 Lagging...
UPS Switch Time	<10mS
Level of Harmonics Distortion	THD <3%
Protection	overload, short circuit, battery low voltage, battery reverse polarity, Island protection
Mechanical
Net weight & Gross weight	3.5KG
Dimensions & Packing	23230190 MM
Cooling	Natural Convection-No Fans
Enclosure	IP65
Environment
Ambient Temperature	-25~65℃ ( Derating from 45℃)
Storage Temperature	-40℃~+85℃
Humidity	100% non-condensing
Warranty	3 Years
Certification
Safety	CE and UL
